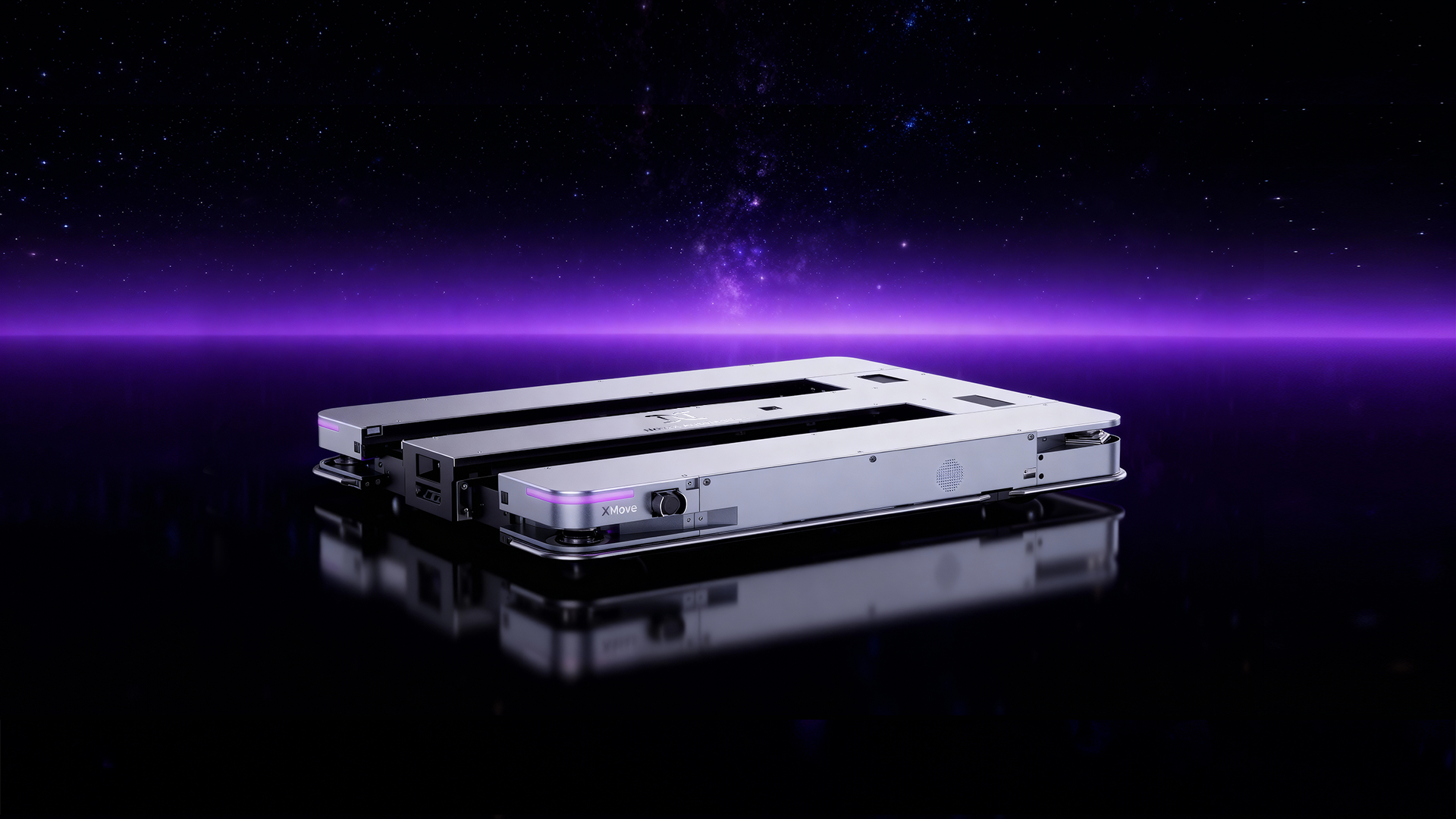

XMove M1

Next-Generation High-Speed Pallet Moving Robot

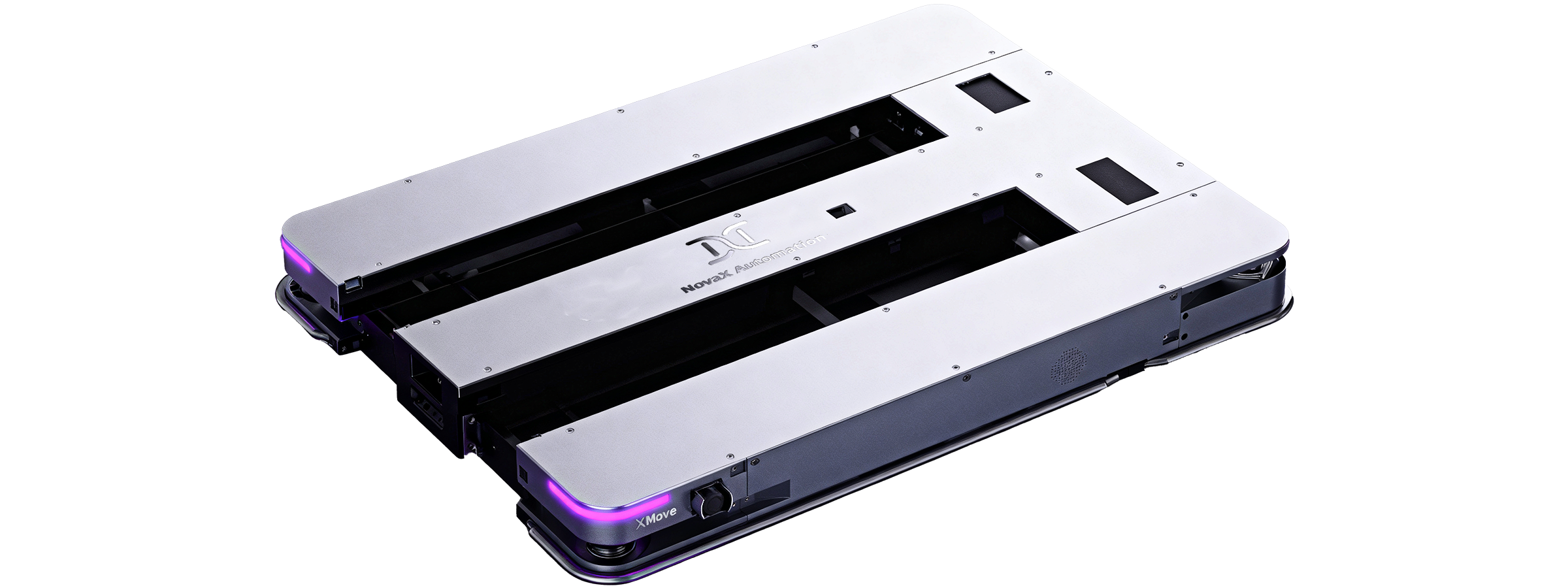

The SLAM-navigated XMove M1 Pallet Moving AMR offers a simple yet powerful one-step pallet handling solution, enabling fast, efficient, and reliable material movement across the entire logistics workflow — reaching speeds of up to 2 m/s with automatic pallet recognition and calibration.

1:5

Load ratio

1.8 m

Narrow aisles

360°

Laser and vision sensing

8 h

Battery Endurance

Technical Innovations

Autonomous Operation

No external assistance required, with enhanced body stability.

Ultimate Performance

Industry-leading 1:5 load ratio and retrieval in 1.8 m narrow aisles.

Advanced Navigation

SLAM + DM dual navigation with 360° laser and vision sensing for maximum safety.

High-Speed Efficiency

Operates at up to 2 m/s with automatic pallet recognition and calibration.

Endurance & Reliability

1.5-hour charging supports 8 hours of continuous operation.

Strong Adaptability

Ground adaptation of 40mm(Gap)/4°(7%)(Slope)/15mm(Step).

The Value of the Product

Unmanned Operations

Enables fully automated pallet movement, creating a seamless flow across inbound, outbound and intralogistics.

Higher Efficiency & Safety

Significantly boosts transport efficiency while reducing human errors and operational accidents.

Flexible Deployment

Easily adapts to different warehouse layouts, workflows, and industries.

Quick ROI

Delivers measurable cost savings and a fast return on investment through improved productivity and reduced labor dependence.

The Parameters of M1 Robots

Type

Items

M1 – Standard

Basic Parameter

Size(mm)

Maximum Lifting Weight (kg)

Self-Weight (kg)

Fork Height (mm)

Fork Extension Distance (mm)

Maximum Lifting Height (mm)

Turning Width

Wireless communications

1286×1102×170

1000

326

1400

≤330

1800mm

Support dual-band 2.4G/5G, IEEE802.11a/b/g/n

Battery Specification

Maximum Slope when the Fork Extension reach to the Maximum

Voltage/Capacity

Battery Life

Battery Endurance/Charging Time

Battery type

2°

51.2V/30AH

The times of fully charging: 1500 times

≥8H/≤2H

LFP

Temperature

Operating Temperature

0-45 ℃

Pallet Requirement

The Width of W1 and W2 (mm)*

Pallet Length L (mm)

Pallet Opening Height H1 (mm)

W1≤190， 700≤W2≤950

≤1400

800kg：95-130mm 1000kg：115-130mm

Movement Capability

Navigation Mode

Maximum Speed(Empty Load/Full Load)(m/s)

Stop Accuracy

Rated Acceleration(m/s²)

Movement Mode

SLAM + DM code Dual Navigation

2.0 / 1.8

±20mm /±2°

Two-wheel differential

*Pallet size definitions are provided in the product datasheet.
